U35-4
COMPACT EXCAVATORS
Call for Pricing

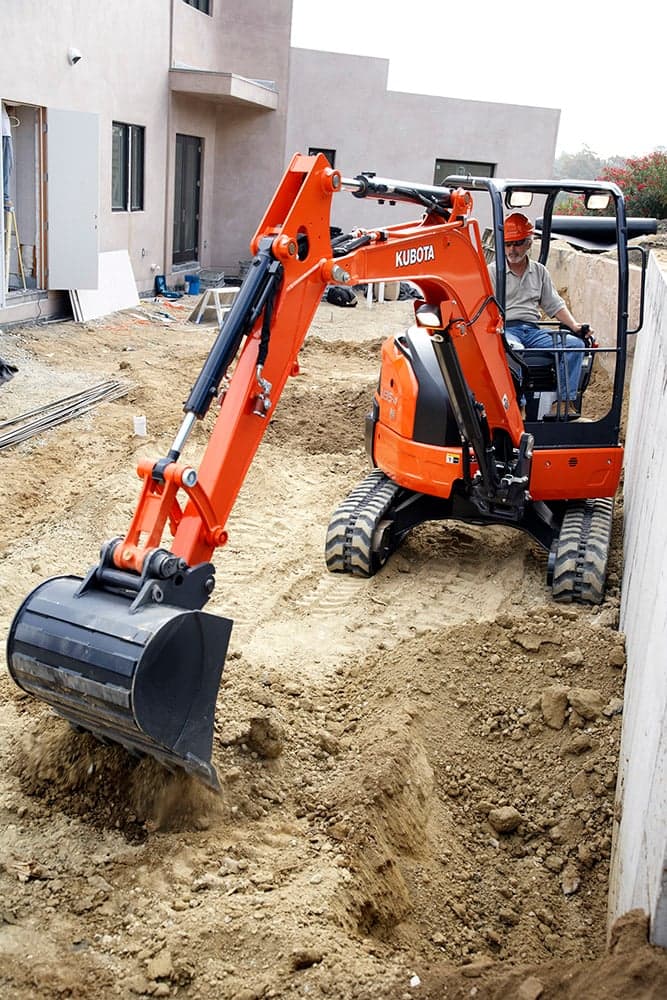

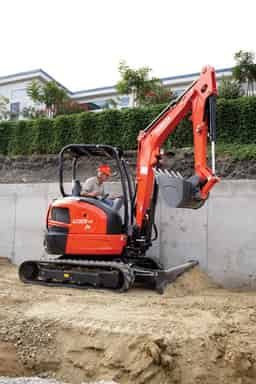

With a wide range of attachments and 24.8 horsepower at its disposal, the Kubota U35-4 Compact Excavator is here to help you reach for the stars. Not only is the compact excavator built with extreme durability, the operator’s station is designed for the ultimate operator experience as well. Nimble enough for confined spaces and sturdy enough for variable terrain, your U35-4 is ready to help you rule the jobsite and unlock your fullest potential. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 60 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
4451 (2019)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
15.8 (60)
Blade Height, In (mm)
13.5 in (343), Angle Blade: 1 ft 3.2 in (385)
Blade Width, Ft (mm)
5 ft 6.9 in (1700)
Bucket Breakout Force, Lbs (kgf)
7924 (3594)
Crawler Length, Ft (mm)
6 ft 10 in (2084)
Displacement (cu. In.)
100.5
Engine Model
Kubota D1703M-DI-E4
Fuel Reservoir, Gal (l)
12.4 (46.9)
Ground Contact Pressure Psi, Kgf (cm2)
Rubber: 4.89 (0.34) / 5.08 (0.36) Steel: 5.00 (0.35) / 5.19 (0.36), Angle blade rubber: 5.10 (0.36) / 5.19 (0.36) Angle blade steel: 5.21 (0.37) / 5.40 (0.38)
Horsepower (gross)
24.8
Hydraulic Oil Reservoir / System, Gal (l)
11.8 (44.6) / 16.1 (61)
Min. Ground Clearance, In (mm)
11.34 (288)
Operating Weight, Lbs (kg)
Rubber: 8129 (3687) / 8451 (3833), Steel: 8325 (3776) / 8647 (3922), Angle blade rubber: 8478 (3845) / 8800 (3991), Angle blade steel: 8674 (3934) / 8996 (4080)
Overall Height, Ft (mm)
8 ft 1.2 in (2470)
Overall Length, Ft (mm)
15 ft 7 in (4749)
Overall Width, Ft (mm)
5 ft 6.9 in (1700)
Pump Capacity, G P M ( L P M)
10.5 (39.6.) x 2 / 5.5 (20.9) x 1
Traveling Speed: High, Mph (kph)
1.9 (3.0)
Traveling Speed: Low, Mph (kph)
2.9 (4.6)
