Specifications

Dimensions
80" tall, 78" wide, and 200" long. Recommended to operate at 2.5 boxes for optimal performance.

Weight

Hydraulic Flow
Designed for open center hydraulics, with a recommended flow of 8 to 18 gallons per minute.

Warranty
Wurdinger Mfg. stands behind the craftsmanship of the products they manufacture. While no formal written warranty is offered, claims of defects in materials or workmanship are evaluated on a case-by-case basis. We are committed to working with our customers to address issues that result directly from the manufacturing process.

We are not responsible for damage caused by misuse, operator error, neglect, or modifications by others. Additionally, we do not warranty normal wear and tear, as this is expected with regular use—much like any agricultural equipment. Wurdinger's support is limited to Wurdinger Mfg.-built products and workmanship; third-party components or incidental damages will not be covered.

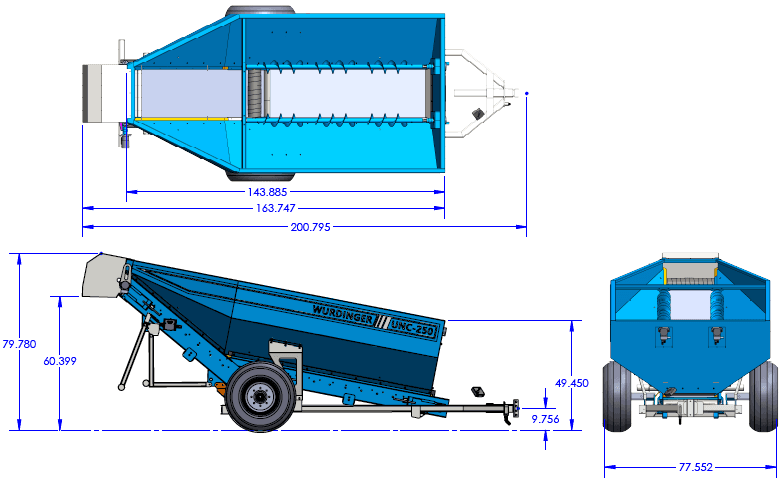

Drawing of nut cart with dimensions
Contact Us

Serviceability

  • Modular Construction
    All major and minor subcomponents bolt directly to the main frame, allowing for faster, easier service and component replacement with minimal downtime.
  • Adjustable, Bolt-On Axles
    Axles can be serviced or replaced using basic tools. This design also lets operators adjust tongue weight to suit their preference or towing setup.
  • Auger Motor Torque Control
    Each auger can be controlled independently, delivering optimal torque while prioritizing operator safety and equipment longevity.

Performance

  • Simplified Hydraulic System
    Independent hydraulic motor controls deliver maximum power to each motor without cross-loading, improving operator safety and system reliability.
  • Enhanced Conveyor Pulleys
    Features include removable shafts for easier maintenance and full gum-lagged surfaces for superior belt traction in demanding environments.

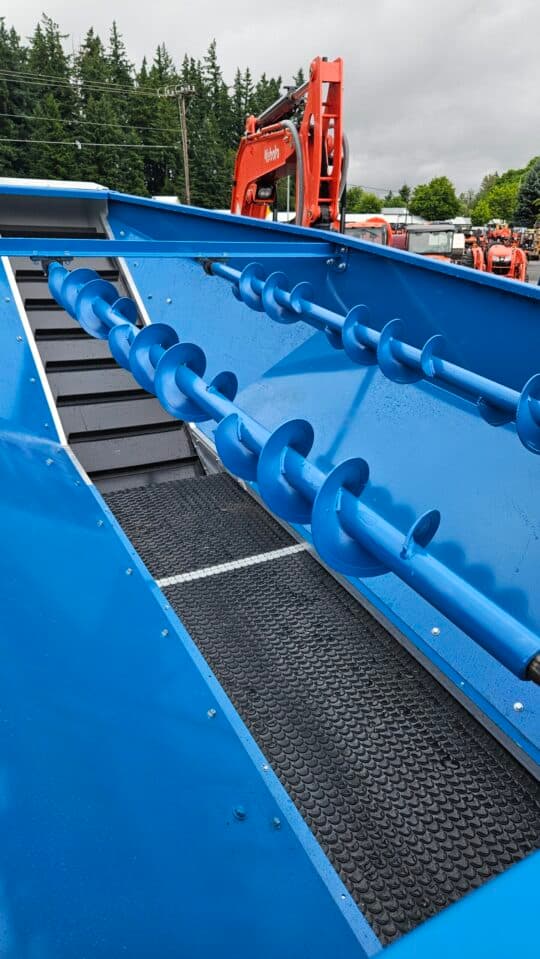

  • Upgraded Auger System
    Augers now use splined shafting, which reduces wear components, improves reliability, and simplifies in-field service or replacement.
  • Heavy-Duty Ag-Style Wheels and Axles
    Equipped with 8-lug industrial-grade wheels and matching high-strength axles designed for field abuse and heavy loads.

Safety

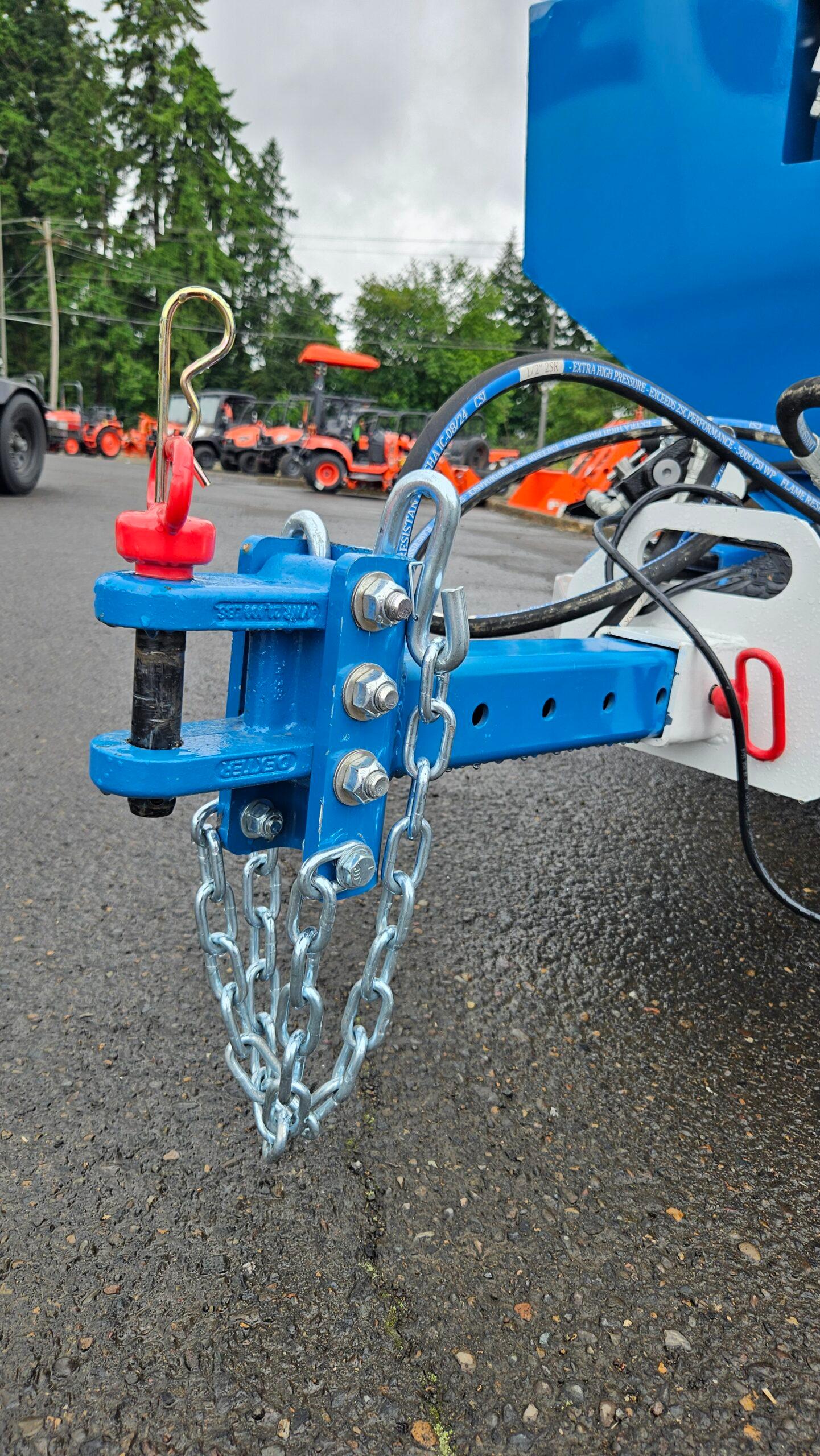

  • Fully Adjustable Hitch
    Bolt-on hitch design allows for changes in both length and height, making it easy to match a wide range of towing configurations.
  • Integrated Trailer Light Kit
    Provides safe and legal road transport between fields while reducing time lost to equipment moves.

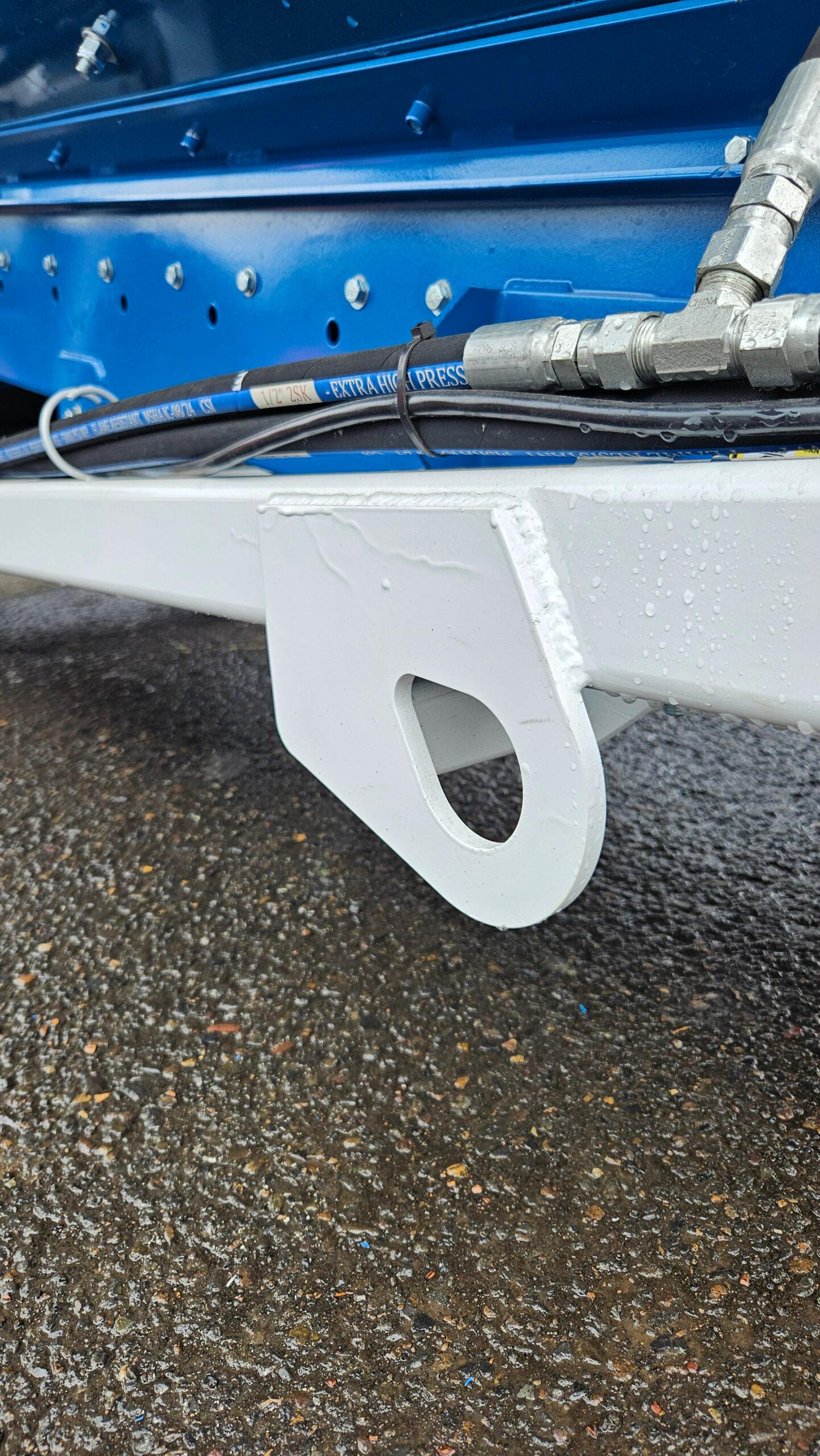

  • Protected Chain Tie-Down Point
    A dedicated tie-down in four locations simplifies transport and protects the cart's finish during shipping or hauling.

  • Go to slide 1
  • Go to slide 2
  • Go to slide 3
  • Go to slide 4
  • Go to slide 5
  • Go to slide 6

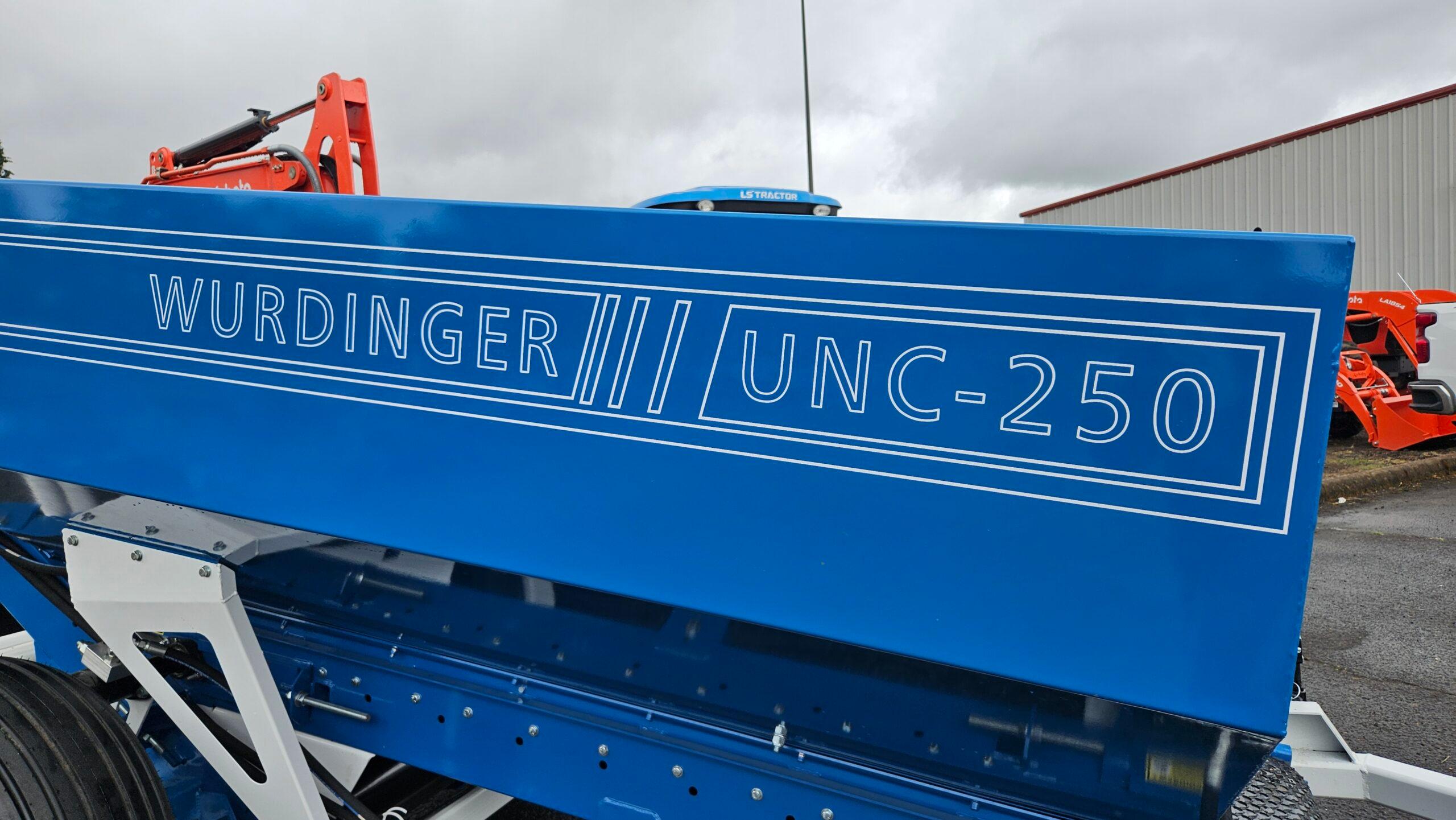

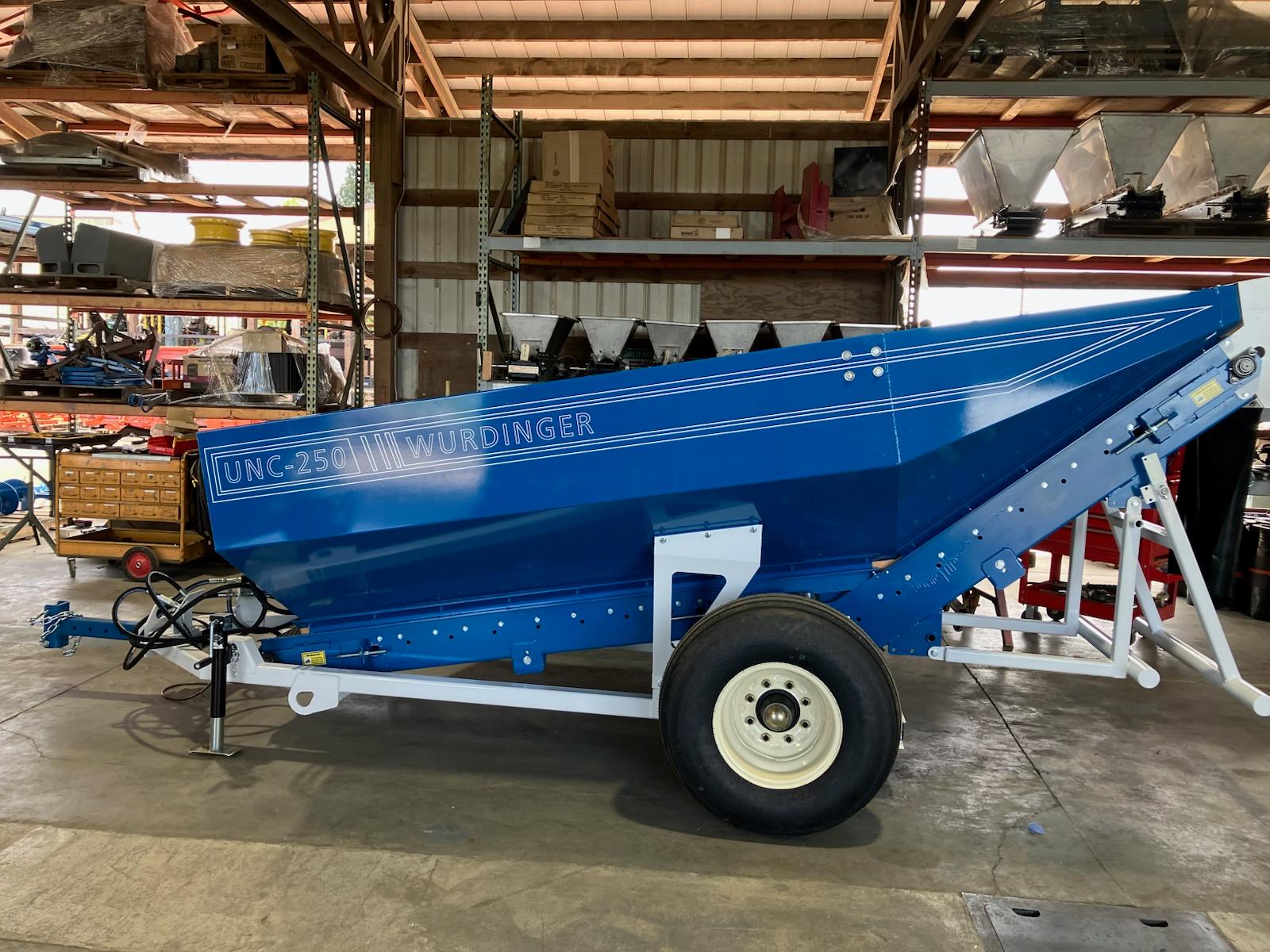

UNC-250 Nut Carts

The redesigned UNC-250 offers a range of thoughtful upgrades for durability, serviceability, and field performance in a 2 and half tote capacity. Below is a list of features that distinguish the UNC-250 from other carts on the market:
